When it comes to backflow prevention and fluid control, the duckbill check valve plays an indispensable role in a variety of applications. Known for its unique shape, resembling a duck’s bill, this small yet powerful valve is designed to prevent reverse flow while ensuring that fluid flows in a single direction. As a leading manufacturer of high-quality silicone components, Neosilicone is here to provide you with a detailed guide on the design, materials, and manufacturing process for duckbill check valves, helping you make informed decisions for your project needs.
What Is a Duckbill Check Valve?

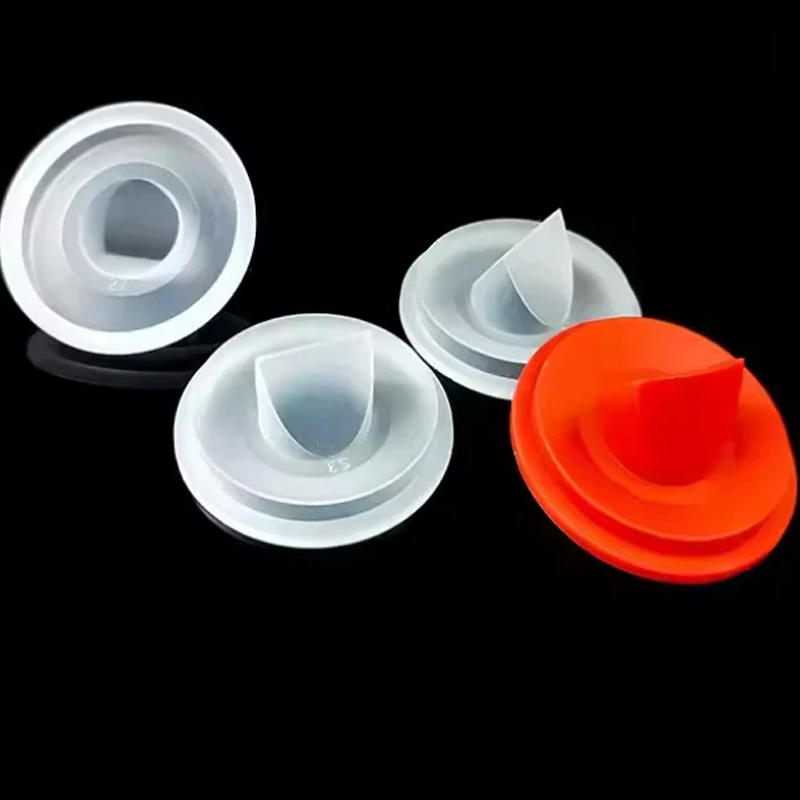

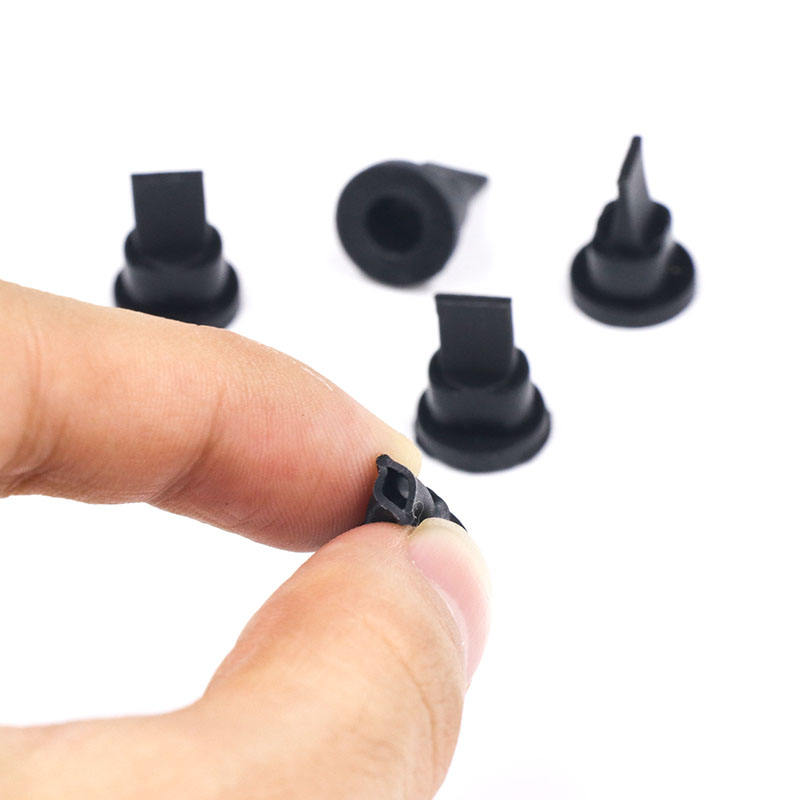

A duckbill check valve, also known as a rubber duckbill valve or non-return valve, is a one-way valve that helps regulate the flow of liquids or gases. The design consists of a flexible elastomeric material formed into the shape of a duck’s bill, which opens when the upstream pressure is higher than the downstream pressure, allowing fluid to pass. When the flow stops, the valve closes, preventing backflow and protecting the system from contamination or damage.
These valves are used across many industries, including medical devices, drainage systems, breast pumps, manual respirators, and more. The ability to provide effective backflow prevention in a compact design makes them crucial in areas where maintaining unidirectional flow is essential.
Duckbill Check Valve Material Selection
Choosing the right material for a duckbill check valve is paramount to ensuring it performs as intended. The material must exhibit flexibility, resilience, and resistance to environmental factors like heat, chemicals, and abrasion. At Neosilicone, we offer a range of materials for duckbill valves, including:

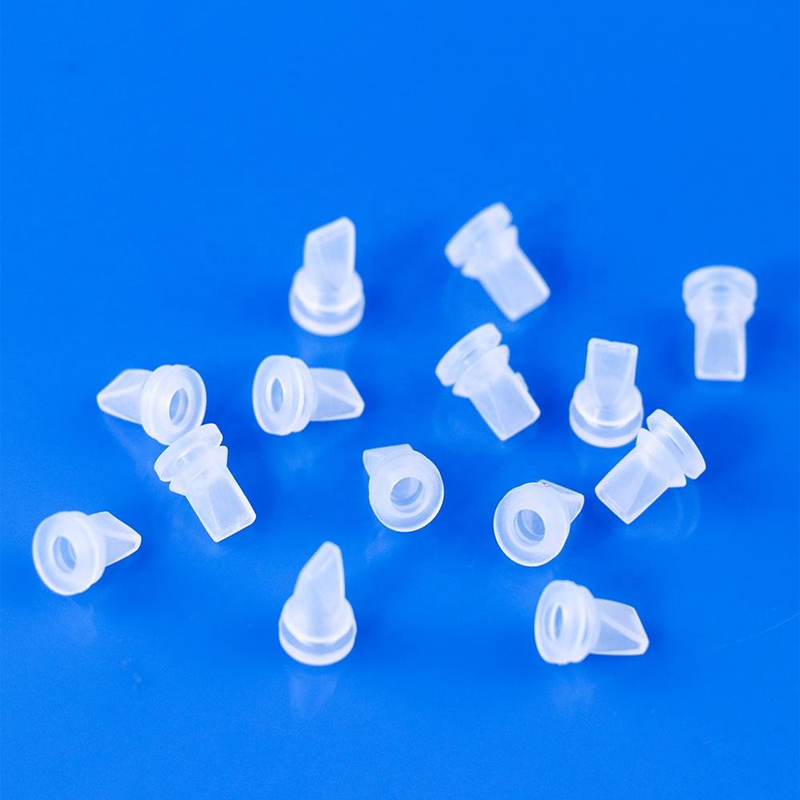

- Medical-Grade Silicone (LSR): Known for its biocompatibility, durability, and resistance to high temperatures. Perfect for use in medical devices, ensuring the safety of patients.
- Food-Grade Silicone: Non-toxic, odorless, and safe for food and beverage applications.
- EPDM, Nitrile, Neoprene: These materials are ideal for industrial applications due to their excellent chemical resistance and ability to withstand harsh environments.
The choice of material, along with the shore hardness, depends on the specific application and working environment. For instance, silicone rubber is often preferred for its superior elasticity and ability to handle both low and high temperatures, which are critical in many medical and food-related applications.

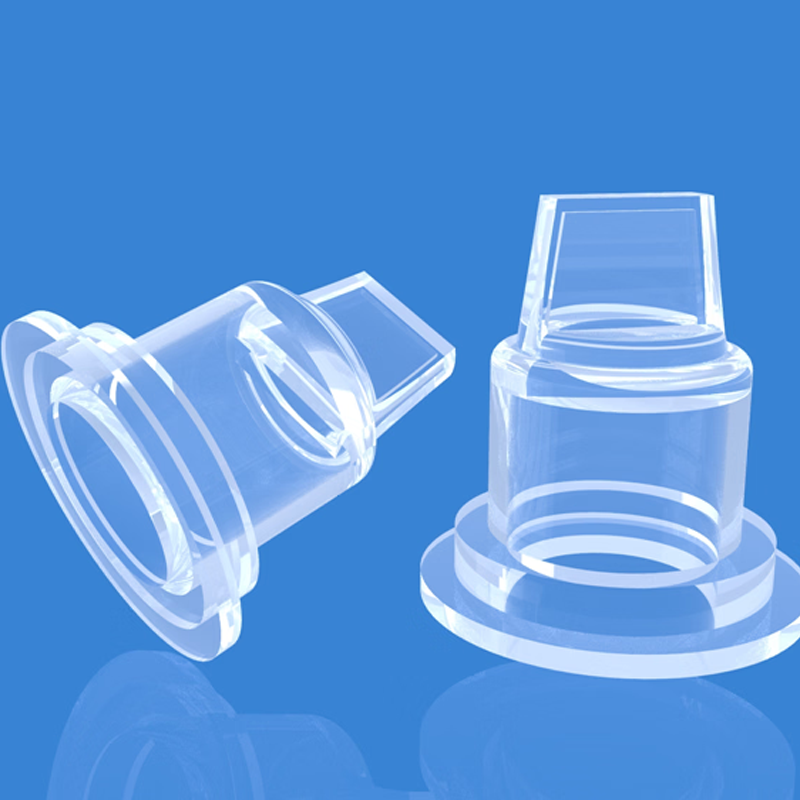

Silicone Duckbill Valve Structure and Design
The design of a duckbill check valve is critical to ensuring its effectiveness. A well-designed valve will open and close easily with minimal resistance, providing optimal fluid control. Key design considerations include:
- Angle and Width of the Duckbill End: The angle needs to be wide enough to allow smooth opening under pressure. A sharp angle can cause inaccurate cuts, affecting the valve’s performance.
- Slit and Lip Size: A longer slit allows the valve to open more easily but can lead to challenges with closure. Balancing these factors is essential for optimal backflow prevention.
- Installation Design: Depending on the installation method (flanged, slip-on, etc.), the duckbill valve must be designed for easy installation and secure fitting.
How Does the Duckbill Check Valve Work?
The operation of a duckbill check valve is governed by pressure differentials. When the upstream pressure exceeds the pressure downstream, the valve opens, allowing the fluid to pass. As the pressure drops or stops, the valve automatically closes, preventing backflow. This simple yet effective mechanism is widely used in many critical systems where reverse flow must be avoided.
- Cracking Pressure: The cracking pressure is the minimum pressure required to open the valve. The material’s hardness and rebound resilience are factors that influence the cracking pressure. High-elastic silicone rubber, such as that provided by Neosilicone, opens and closes easily while maintaining durability over time.
- Flow Rate and Sealing: As the flow rate increases, the duckbill valve opens further. When the flow ceases, the valve returns to its closed position under the force of atmospheric pressure, preventing backflow.
Die-Cutting Tool Design and Manufacturing Process
The process of making duckbill check valves begins with the die-cutting of the rubber material. The cutting tool used in this process has a specific angle (typically 44-55 degrees) to ensure precision in the cutting process. If the cutting tool becomes blunt or worn, it may result in excess material being removed, creating burrs or rough edges that affect the valve’s sealing capabilities.
- Die-Cutting Tool Design: A sharp tool ensures a clean cut, preventing the creation of burrs or unwanted material, which could compromise the sealing ability of the valve.

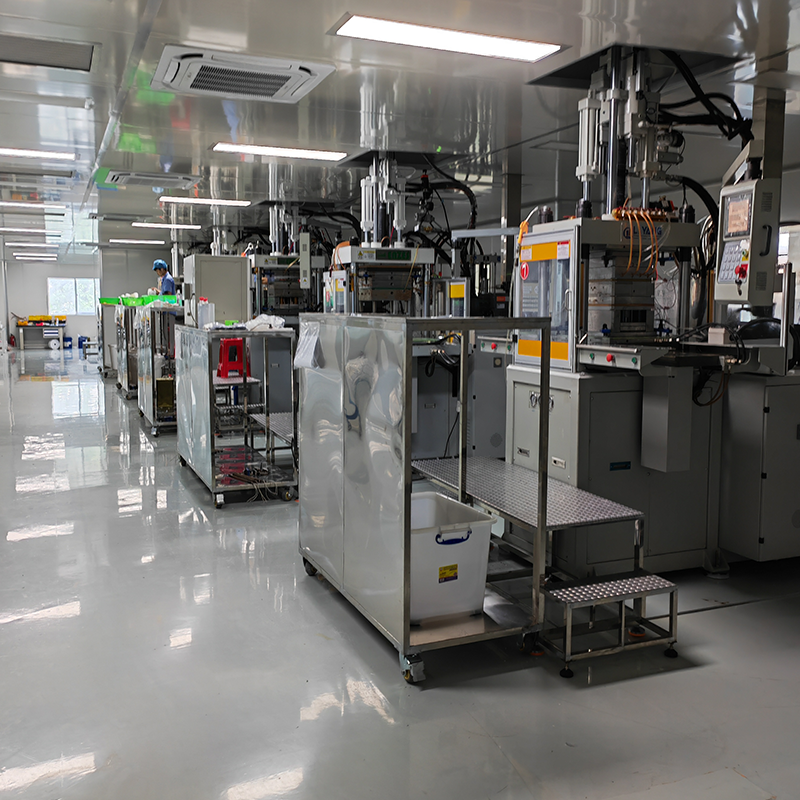

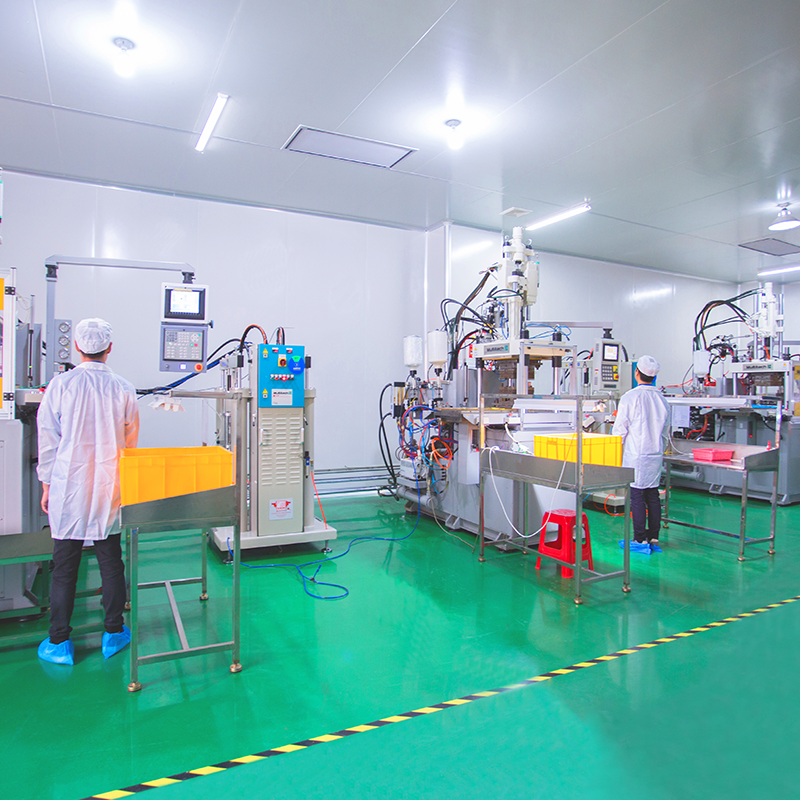

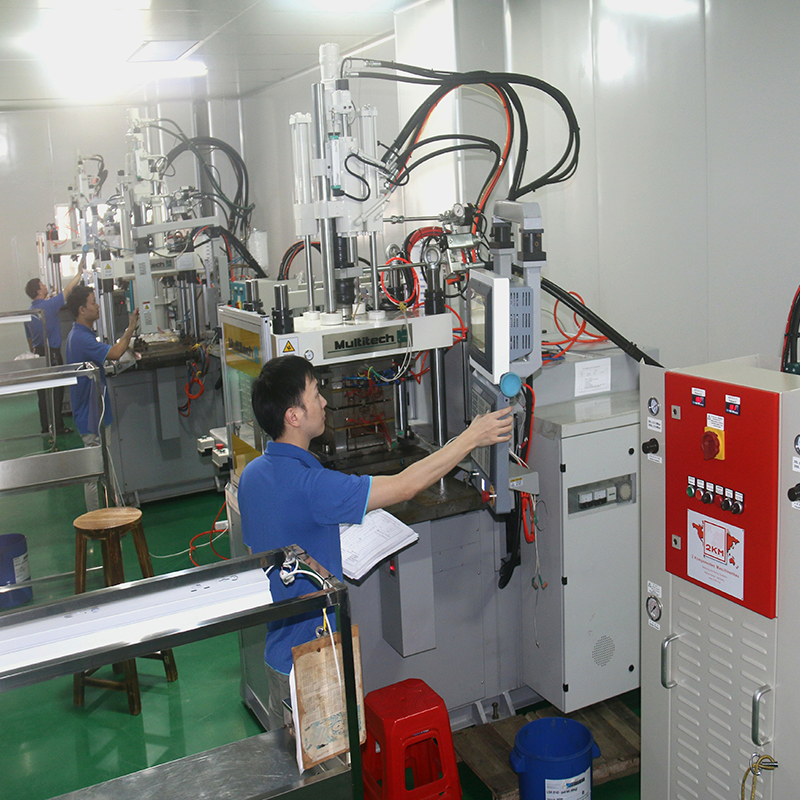

- Rubber Compression Molding: The rubber material is molded under pressure to ensure consistency and precision. The molding process ensures that the valve maintains its structural integrity, shape, and elasticity, ensuring reliability throughout its lifecycle.
Common Issues and Solutions in Duckbill Check Valve Manufacturing
While duckbill valves are simple in design, a few common issues may arise during the manufacturing process. These include:
- Burrs and Material Loss: Caused by blunt die-cutting tools or improper pressure during the molding process. Using high-quality, sharp tools and maintaining proper pressure can avoid these issues.
- Asymmetric Slit: If the valve is not properly positioned during the cutting process or the die-cutting tool is deformed, it can lead to uneven slits. Proper positioning and precise tool calibration can eliminate this problem.
- Deformation: Duckbill valves may deform during transportation, particularly if they are not packed properly. Using air-filled packing systems helps prevent deformation during shipping, ensuring that the valves arrive at their destination in perfect condition.
Why Choose Neosilicone for Your Duckbill Check Valve Needs?
At Neosilicone, we specialize in the design, manufacturing, and supply of custom duckbill check valves tailored to meet the specific needs of various industries. Our one-stop service includes everything from material selection and custom tooling to precision molding and quality control, ensuring that your duckbill check valves meet the highest standards.
Key Reasons to Work with Neosilicone:
- Customization: We provide OEM services, allowing for complete customization of your duckbill valves, including size, color, material, and design.
- High-Quality Manufacturing: Our valves are produced using advanced molding techniques and high-quality materials to ensure long-lasting performance.
- Compliance with Industry Standards: All our products are manufactured in ISO 9001 certified facilities, ensuring that they meet global quality standards.
- Expert Engineering Support: Our team of experts works closely with you to optimize your design for manufacturability (DFM), minimizing costs and ensuring the best possible outcome for your project.
Whether you’re looking for duckbill check valves for medical devices, industrial applications, or any other purpose, Neosilicone is your trusted supplier and manufacturer. Contact us today to discuss your project, and let us help you find the perfect solution for your needs.
Final Thoughts
The duckbill check valve is an essential component for ensuring reliable fluid control and preventing backflow in a wide range of applications. Understanding the design, materials, and manufacturing process is critical to selecting the right valve for your needs. With Neosilicone’s comprehensive custom services, you can rely on us to deliver high-quality, durable duckbill valves that meet the specific requirements of your application. Reach out to us today to learn more about how we can support your project with expert design and manufacturing solutions.
