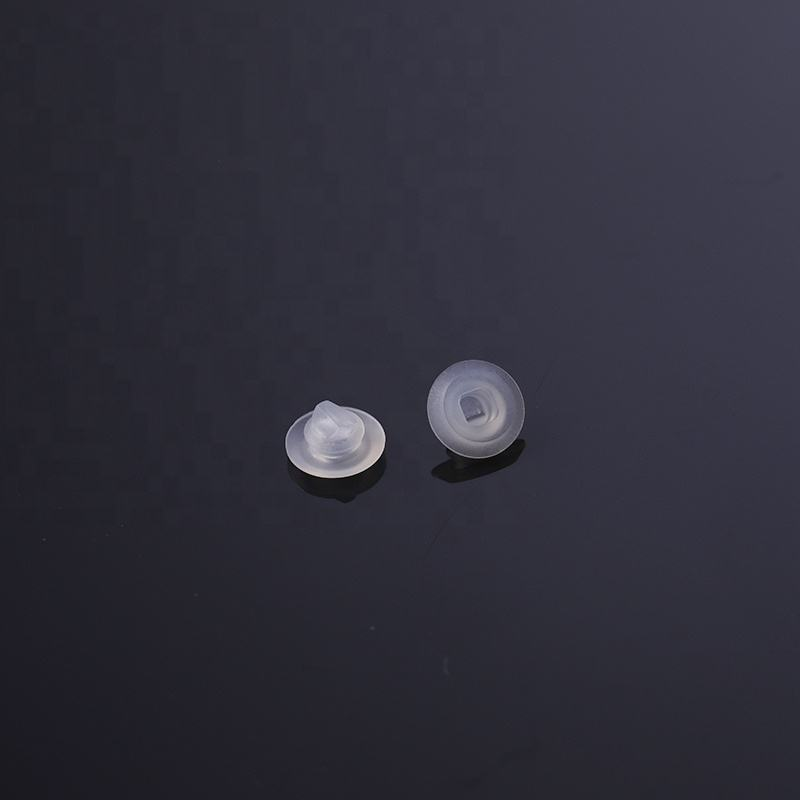

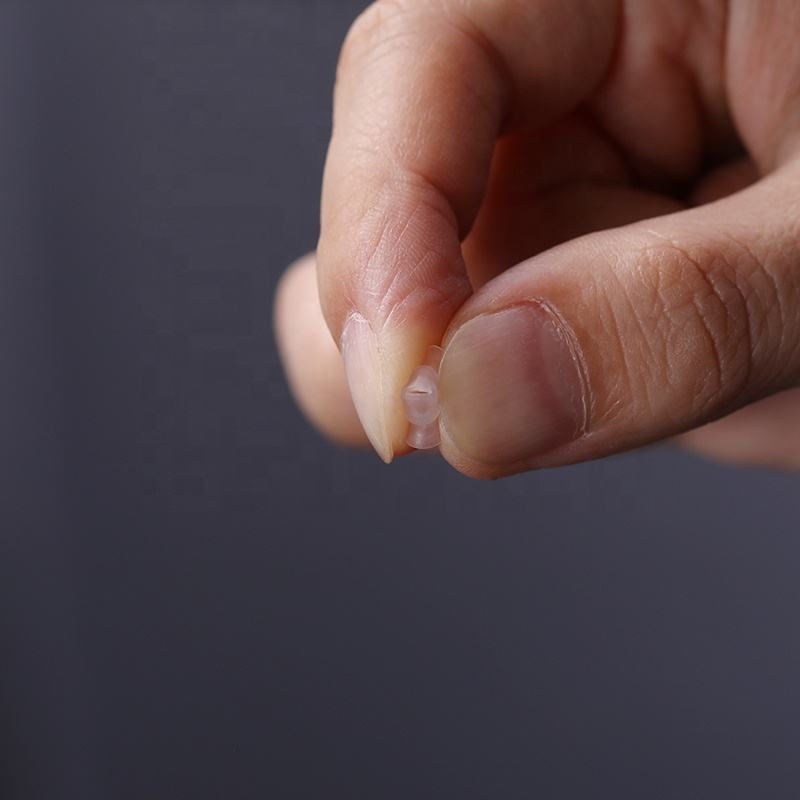

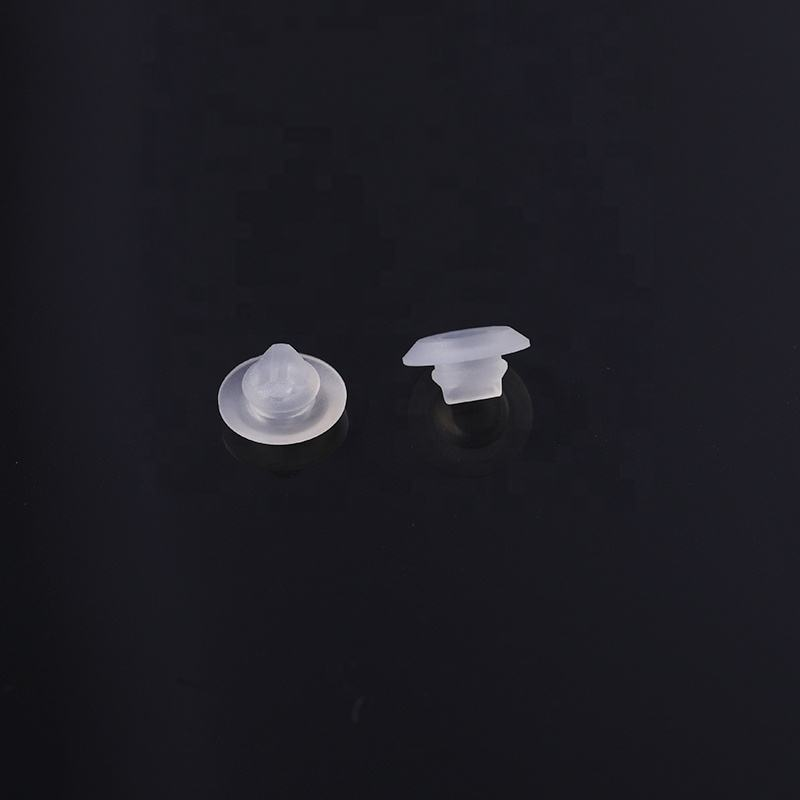

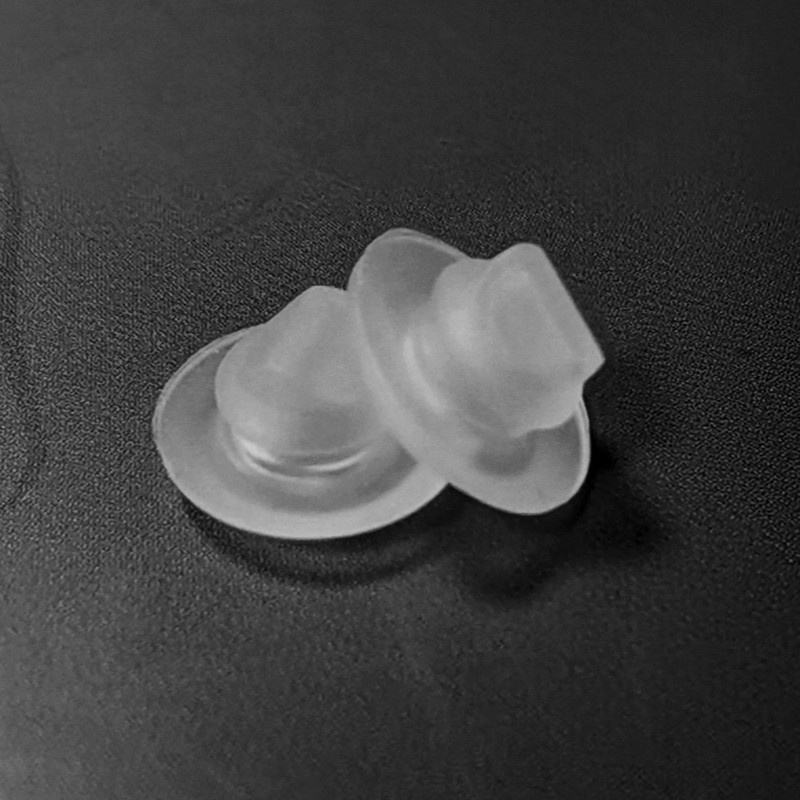

Customize Silicone Rubber Injection Molding Silicone Duckbill Umbrella Valves

Overview

Our Custom Silicone Duckbill & Umbrella Valves provide reliable one-way flow control and pressure relief for diverse applications. Manufactured from premium LSR via precision injection molding, they ensure leak-proof sealing and precise actuation. We offer comprehensive OEM services for custom design, sizing, and performance tuning to meet your specific fluid management needs.

Features

Production Process

• Material Preparation & Compounding: We select high-purity, platinum-cured LSR. For specialized needs, additives for enhanced chemical resistance or specific durometer (hardness) are uniformly compounded under controlled conditions.

• Precision Mold Design & Fabrication: Multi-cavity molds are engineered using CAD. Core and cavity components, especially for the delicate duckbill lips or umbrella seal, are machined from hardened steel using high-speed CNC and finished with Mirror EDM for flawless, micron-precise sealing surfaces.

• LSR Injection Molding: The prepared LSR is injected into the temperature-controlled molds in a clean environment. This process forms complex, undercut geometries like duckbill slits and thin umbrella membranes in a single, flash-free operation.

• Demolding and Post-Curing: Valves are automatically ejected after curing and undergo a secondary post-curing cycle. This step optimizes the silicone’s physical properties, ensuring long-term elasticity and performance stability.

• Trimming and Deflashing: Any microscopic parting line flash is removed via cryogenic deflashing or precision laser trimming to guarantee clean, functional edges that do not hinder sealing or flow.

• 100% Functional and Dimensional QC: Every valve undergoes an automated pressure decay leak test. Statistical samples from each production batch are tested for precise cracking pressure and flow rate using digital equipment.

• Final Inspection and Packaging: A final visual and dimensional inspection is conducted. Products are cleaned and packaged per your specifications, ready for integration or shipment.

Why Partner with Us for Your Manufacturing Needs?

1. Expertise in Complex Silicone Valve Molding: With deep specialization in LSR, we master the molding of intricate, functional geometries like duckbill lips and umbrella membranes, ensuring reliable performance from prototype to high-volume production.

2. Application-Driven Customization & Engineering Support: We collaborate closely to tailor valve design, material grade, and performance parameters (pressure, flow) to solve your specific venting, dispensing, or contamination-control challenges.

3. Efficient, Vertically Integrated Project Execution: Our in-house control over mold design, fabrication, and production ensures seamless communication, shorter lead times, protected intellectual property, and scalable output.

4. Certified Quality with Rigorous Functional Validation: Our ISO 9001-certified system mandates strict process controls and 100% functional testing, guaranteeing that every valve delivers consistent, leak-proof performance and meets industry standards.

Our Factory

Our advanced manufacturing facility integrates a dedicated Class 100,000 cleanroom for precision LSR molding. We operate state-of-the-art LSR injection molding machines with automated material handling for consistent, high-volume output. Our in-house tooling department, equipped with 5-axis CNC, Mirror EDM, and grinding centers, allows for rapid prototyping and precision mold maintenance. Quality assurance is enforced using 3D optical measurement systems, automated vision inspection, and custom-built pneumatic test stations for performance validation. As an ISO 9001 and IATF 16949 certified manufacturer, our vertically integrated processes guarantee the production of high-performance, reliable silicone valves.
